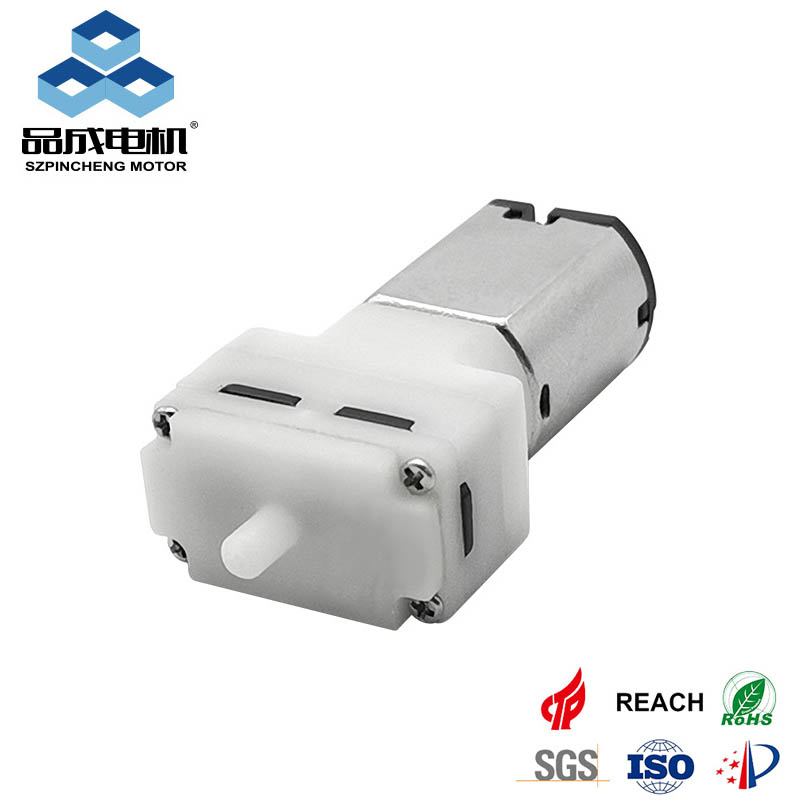

030-XA 12V Micro Air Pump for Sphygmomanometer | Pinmotor

1. Pneumatic Circuit Architecture & Impedance Matching

The 030-XA features a 3.1mm O.D. nozzle designed for seamless interfacing with medical-grade silicone or PVC tubing. To ensure a rapid inflation rate of ≤8s (0-300 mmHg in 100cc), engineers should minimize pneumatic impedance by keeping the tubing path as linear as possible. For oscillometric blood pressure monitoring, the high-pressure output of >375 mmHg necessitates high-quality elastomeric seals to prevent pressure drops exceeding the specified ≤3.0 mmHg/min threshold.

2. Electrical Management & PWM Control Logic

While the 030-XA supports a wide voltage spectrum (DC 3V to 12V), precision in pressure control is best achieved through Pulse Width Modulation (PWM).

• Inrush Current Mitigation: Designers should account for an initial current surge during motor startup. Implementing a soft-start circuit or decoupling capacitors is recommended to prevent electromagnetic interference (EMI) with sensitive diagnostic sensors.

• Voltage Optimization: For 12V configurations, ensure the power rail provides a stable 1.0 W output to maintain consistent diaphragm displacement and prevent thermal throttling during continuous duty cycles.

3. Mechanical Decoupling & Acoustic Attenuation

To maintain the whisper-quiet performance of ≤60 dB, mechanical isolation is paramount.

• Vibration Dampening: The 14g chassis should be mounted using elastomeric dampeners or silicone sleeves. This prevents the motor's mechanical resonance from amplifying through the device’s plastic housing.

• Airflow Buffering: In noise-sensitive environments, integrating a small plenum chamber or muffler on the intake/exhaust side can further attenuate high-frequency pneumatic noise without compromising the 0.3-1.0 LPM flow rate.

4. Reliability & Lifecycle Validation

The 030-XA is rated for >30,000 cycles. For medical OEM applications, it is advised to implement periodic maintenance checks on the intake filters to prevent particulate ingress, which could compromise the internal diaphragm’s airtightness and operational longevity.
